iPhone 17 Pro Max Specifications | Category | Details |
|---|
| Network Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G | | 2G Bands | GSM 850 / 900 / 1800 / 1900; CDMA 800 / 1900 | | 3G Bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100; CDMA2000 1xEV-DO | | 4G Bands | A3526: 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66
A3257: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71
A3525: 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71
A3527: 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 66 | | 5G Bands | A3526: 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6
A3257: 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave
A3525: 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79 SA/NSA/Sub6
A3527: 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 | | Speed | HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps | | Launch Announced | 2025, September 09 | | Status | Released 2025, September 19 | | Body Dimensions | 163.4 x 78 x 8.8 mm (6.43 x 3.07 x 0.35 in) | | Weight | 233 g (8.22 oz) | | Build | Glass front (Ceramic Shield 2), aluminum alloy frame, aluminum alloy back/glass back (Ceramic Shield) | | SIM | International: Nano-SIM + eSIM + eSIM (max 2 active)
USA: eSIM + eSIM (8 or more, max 2 active)

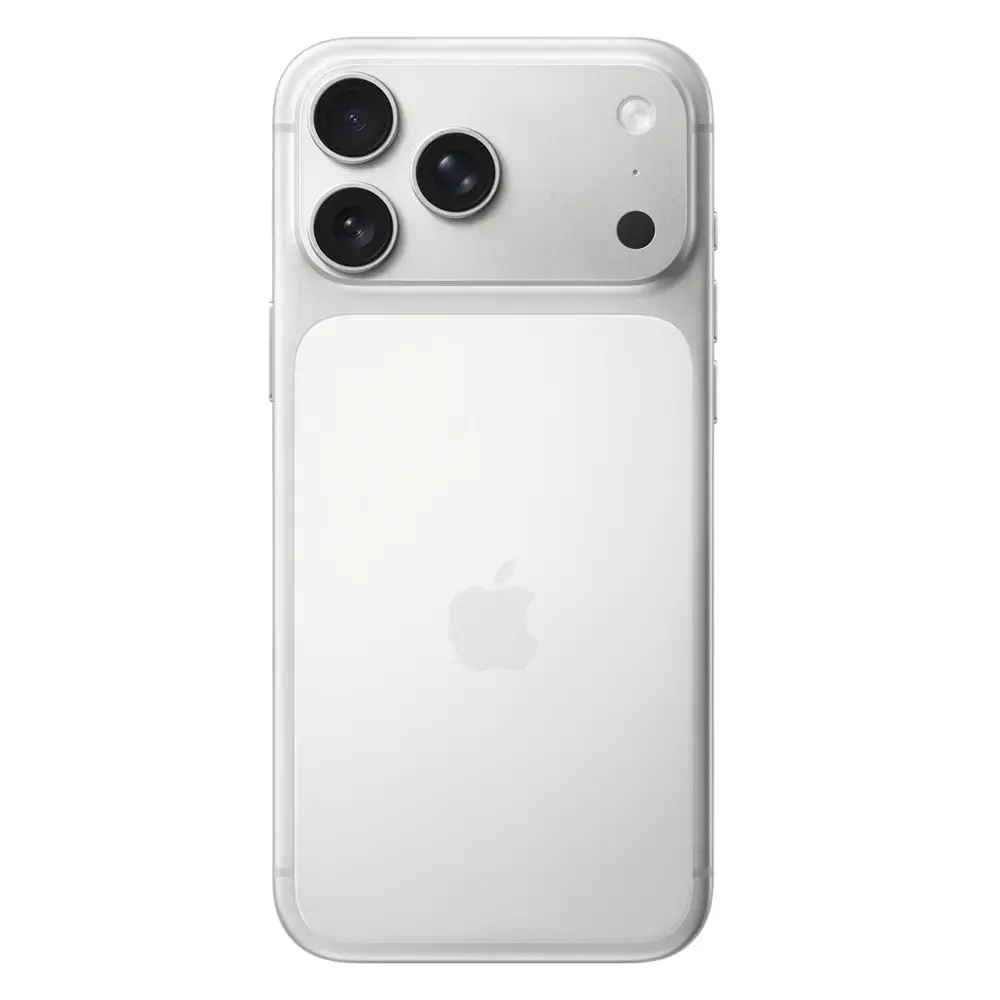

China: Nano-SIM + Nano-SIM | | Other Protection/Features | IP68 dust/water resistant (up to 6m for 30 min), Apple Pay (Visa, MasterCard, AMEX certified) | | Display Type | LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 1600 nits (HBM), 3000 nits (peak) | | Size | 6.9 inches, 115.6 cm² (~90.7% screen-to-body ratio) | | Resolution | 1320 x 2868 pixels, 19.5:9 ratio (~460 ppi density) | | Protection | Ceramic Shield 2 (Mohs level 5), Anti-reflective coating | | OS | iOS 26 | | Chipset | Apple A19 Pro (3 nm) | | CPU | Hexa-core (2x4.26 GHz + 4xX.X GHz) | | GPU | Apple GPU (6-core graphics) | | Memory Internal | 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM, 2TB 12GB RAM (NVMe) | | Card Slot | No | | Main Camera | Triple: 48 MP, f/1.6, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
48 MP, f/2.8, 100mm (periscope telephoto), 1/2.55", 0.7µm, PDAF, 3D sensor-shift OIS, 4x optical zoom
48 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 0.7µm, PDAF
TOF 3D LiDAR scanner (depth) | | Main Camera Features | Dual-LED dual-tone flash, HDR (photo/panorama) | | Main Camera Video | 4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, ProRes RAW, Apple Log 2, 3D (spatial) video/audio, stereo sound recording | | Selfie Camera | 18 MP multi-aspect, f/1.9 (wide), PDAF, OIS + SL 3D (depth/biometrics) | | Selfie Features | HDR, Dolby Vision HDR, 3D (spatial audio), stereo sound rec., ProRes RAW, Apple Log 2 | | Selfie Video | 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS | | Sound | Stereo speakers, no 3.5mm jack | | WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot | | Bluetooth | 6.0, A2DP, LE | | Positioning | GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC | | NFC | Yes | | Radio | No | | USB | USB Type-C 3.2 Gen 2, DisplayPort | | Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer, Ultra Wideband (UWB gen2), Emergency SOS, Messages & Find My via satellite | | Battery Types | Li-Ion 4832 mAh (Nano SIM model)

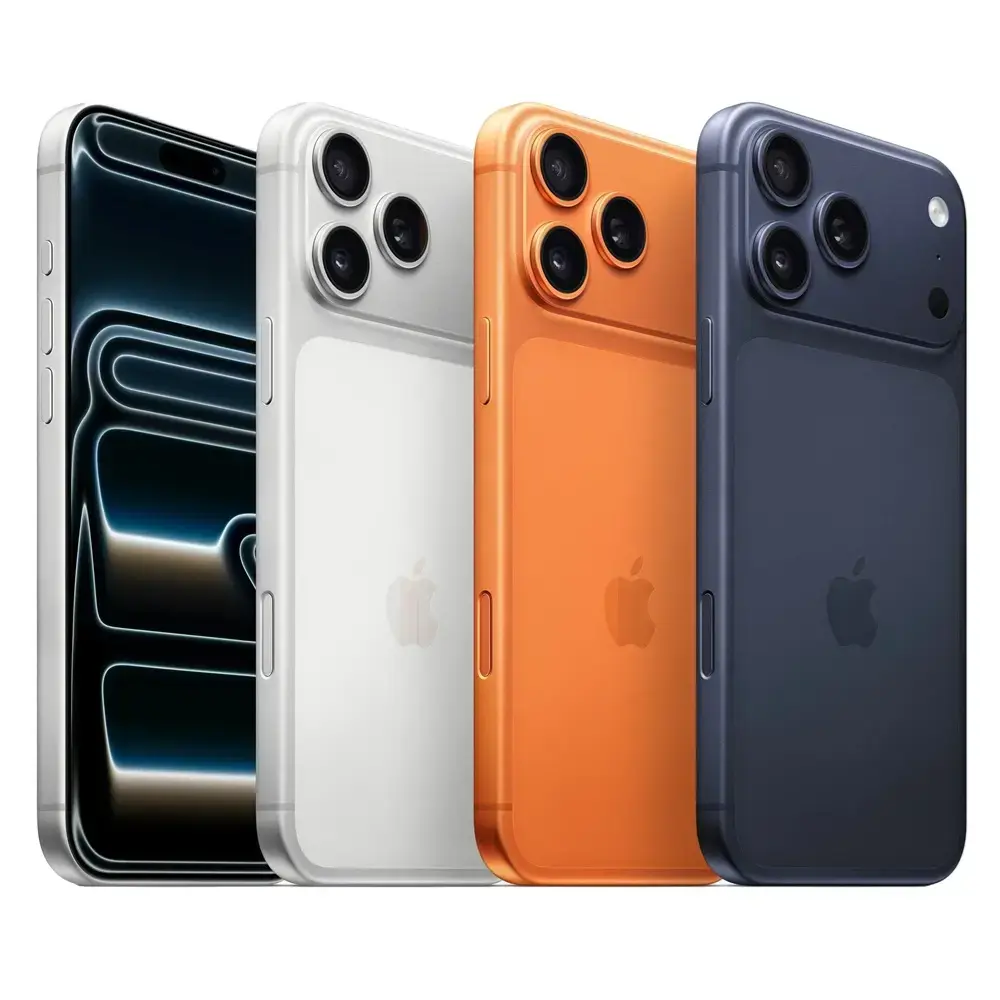

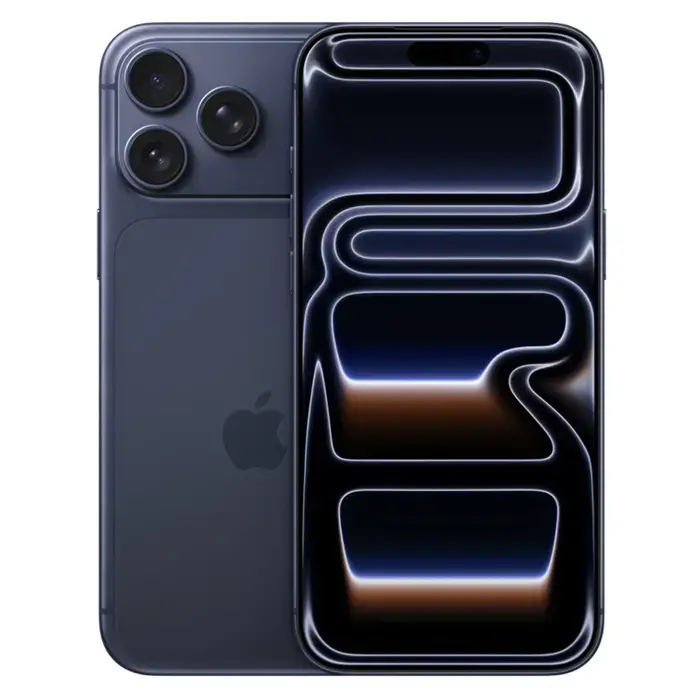

Li-Ion 5088 mAh (eSIM only model) | | Charging | Wired PD2.0 (50% in 20 min), Wireless MagSafe/Qi2 25W (50% in 30 min; 15W in China), 4.5W reverse wired | | Colors | Silver, Cosmic Orange, Deep Blue | | Models | iPhone 18,2; A3526 (International); A3257 (USA); A3525 (Middle East, Canada, Mexico); A3527 (China, Hong Kong) |
|
